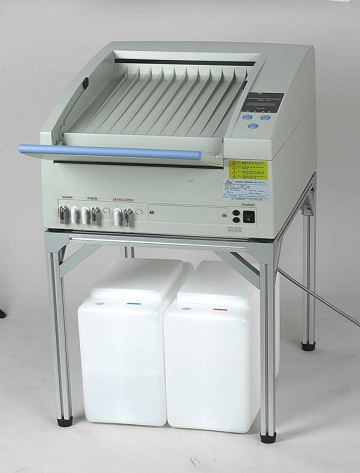

X Ray Film Processor
FEATURES:
Retractable feed tray provides extra space in the dark room
Exceptionally quiet operation
Micro-processor controlled
High-quality developing
Easy installation, use and maintenance
Automatic replenishment
The push button control panel digitally displays
- Replenishment rate
- Developer & dryer temperature
- Heater & blower timer
- Clock
- Processing film counter
Water level sensor prevents tanks from overflowing
Requires water input connection and drain
Stand-by mode for energy saving
Two year warranty on all parts
STANDARD ACCESSORIES:
- Stand (pre-assembled)
- Replenishment tanks
- Hoses
- Spare parts kit
- Manual
OPTIONAL FEATURES:
Closed loop system
AC 220-240 Volt, 50Hz/60Hz, Single phase
SPECIFICATIONS:
Processor type: Continuous roller transport system
Processing time: 90 to 210 sec by digital control
Film size: Sheet film: from 4" x 4" (10x10cm) up to 14" x 17" (35x43cm)
Processing capacity: 100 sheets/hr (mixed sizes) at 90 sec standard processing time
Developer temperature: Automatic micro-processor controlled
- Temperature control range: 28-38'C (82-100'F)
- Temperature can be easily changed and reset
Dryer temperature: Automatic microprocessor controlled. Temperature control range: 45-55ºC (113-131ºF). Temperature can be easily changed and reset.
Circulation mode: Anti-crystalization by automatic circulation pump.
Replenishment mode: Automatic microprocessor and manual controlled
Dryer type: Blower-heater
Film feed sensor: Magnetic micro-switch sensors
Tank capacities: Developer, 5.0 liters (1.32gal); Fixer, 5.0 liters (1.32gal); Washer, 6.0 liters (1.58gal)
Water consumption: 1.5 liters (0.4gal) / min
Power consumption: Operation mode, 1.7 kw; Stand-by mode, 0.8 kw
Electrical connections: AC 220-240V, 50-60Hz, Single phase; AC 110-120V, 50-60Hz, Single phase
Dimensions: Closed feed tray: 63.5cm L x 38.5cm H x 52.5cm W (25.0"L x 15.0"H x 20.6"W) Open feed tray: 86.5cm L x 38.5cm H x 52.5cm W (34.9"L x 15.0"H x 20.6"W)
Weight: Net, 35 kg (77.1 lbs); Gross, 77 kg (169.8 lbs)
Warranty: 2 Year, parts only.
Specifications
| Processor type | Continuous roller transport system | |
| Processing time | 90 to 210 sec | |
| Film size | From 4"x4" (10cm x 10cm) up to 14"x51" (35cm x 130cm) | |
| Processing capacity | 100sheets/hr (mixed sizes) at 90 sec standard processing time | |
| Developer temperature | Automatic microprocessor controlled Temperature control range: 28-38'C (82-100'F) Temperature can be easily changed and reset | |
| Dryer temperature | Automatic microprocessor controlled Temperature control range: 45-55'C (113-131'F) Temperature can be easily changed and reset | |
| Circulation mode | Anti-crystallization and temperature control by automatic circulation pump | |
| Replenishment mode | Automatic microprocessor and manual-controlled | |
| Dryer type | Blower-heater | |
| Film feed sensor | Dual Magnetic Switches | |
| Tank capacities | Developer: 5.0 liters (1.32 gallons) Fixed: 5.0 liters (1.32 gallons) Washer:6.0 liters (1.58 gallons) | |
| Water consumption | 1.5 liters (0.4 gallon) / min | |
| Power consumption | Operation mode: 1.7 kw Stand-by mode: 0.8 kw | |
| Electrical connections | AC 220-240 Volt, 50Hz/60Hz, Single phase AC 110-120 Volt, 50Hz/60Hz, Single phase | |
| Weight | Net: 35 kg (77.1 lbs) Gross: 77 kg (169.8 lbs) | |
| Standard Accessories | Replenishment tanks: 2 x 25 litters (7.0 gallons) Hoses / Stand / Manual / Spare parts kit | |
| Dimensions | Closed feed tray | L 63.5cm (25.0 inches) H 38.5cm (15.0 inches) W 52.5cm (20.6 inches) |
| Open feed tray | L 86.5cm (34.9 inches) | |
