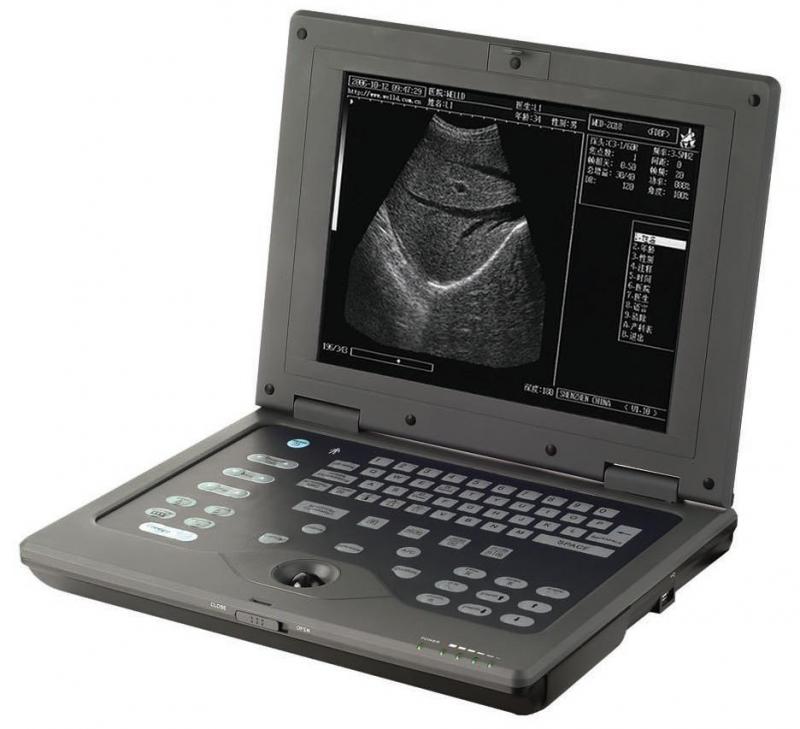

Digital Notebook Ultrasound

Main Features:
This versatile linear/convex DIGITAL Ultrasound system is ideal for mixed practice. It is designed for bedside use and emergency scanning (triage ultrasound) either on site or in a rescue situation. Notebook MIG-4018V, weight only 2kg,is distinguishable by its bright and clear image quality.The probes offer a wide range of diagnostic applications,This scanner is a cost effective solution for veterinary scanning.The complete software package,the multi-step zoom,and the high product versatility are available in it.

Technical Specification :
Scanning Method:Convex,linear multi-frequency with wide band.
Display Mode:B,B+B,B+M,M
Gray Scale:256 levels

                                                                               Contact us for more information
Monitor Size:10.4" TFT color LCD
Image Procession:DFS,DRF,RDA,VGA/DSC and image pre & post
Cine-memory:206 frames (human),256 frames(vet)
32 image permanent storage
Image magnification: ×1.0,×1.2,×1.5,×2.0 times
Multi-step Zoom (1:2) in both real-time and frozen modes
Focusing selectable
Depth adjustable in real-time of B and B+B mode
Image Conversion is U/D,L/R and B/W.
8 different coded-color on a external color monitor
15 different kinds of body marks
Measurement is in Distance ,Circumference/Area,Heart Rate、EF rate for heart,and GS,CRL,BPD,HC,FL,AC for OB/GY measurement,and Gestational Age,Fetal weight,EDD calculation.
Characteristic showing in real-time clock,ID,Sex,Age,Focusing info and Hospital Name

This Ultrasound has internal battery (3 hours), USB port, video port.

Standard configuration: main unit + 6.5MHz Multifrequency rectal linear (waterproof), carrying case, one bottle of gel

Options:
R40/3.5MHz Multifrequency convex probe
R20/5.0MHz Multifrequency micro-convex probe
L40/7.5MHz Multifrequency linear probe
