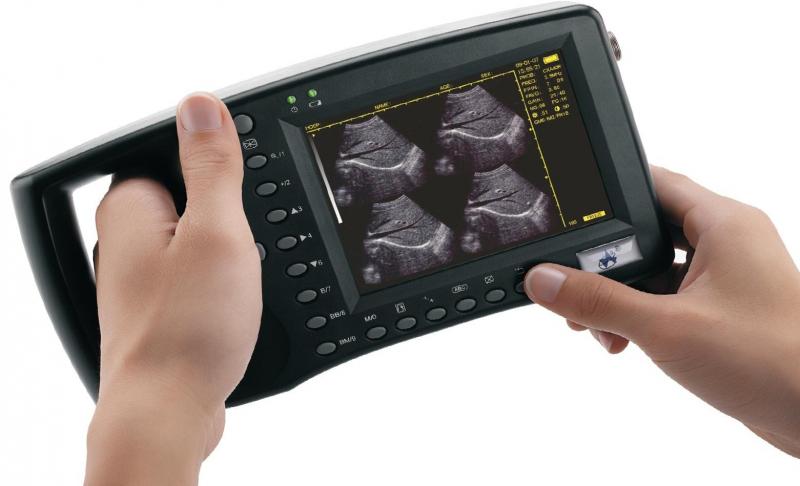

Digital Palm Handheld Ultrasound

Main Features:
Net weight:700g
5.0 inch TFT LCD
Easy-to-use GUI menu

Low power consumption
USB 2.0 For real-time picture uploading to PC
Full digital beamforming technology
Probe automatic identification
Gama correction, Color encode, Image Smoothen

Technical Specification :
Display Modes:B,B+B,B+M,M,4B
Scanning Depth: 80mm~220mm
Gray Scales: 256
Cine-loop: 400 frames                                                        Contact us for more information
Image Permanent Storage: 128 frames
Image Conversion: up/down, left/right
Measurements: distance, circumference, area, volume, EF rate, heart rate,Time
OB Measurements: BPD, GS, CRL, FL, HC, AC, EDD, GA, FW
Port: VIDEO(PALD, NTSC), USB 2.0,Mouse
Monitor: 5 inch  TFT color LCD
Body marks: 40

Comments: date&time, name, sex, age, hospital
Applications: abdominal, OB/GYN, urology, cardiology
Weight: 700g
Dimensions: 230mmX120mmX38mm
Battery Working : >3 hours

Standard configuration:
main unit + 6.5MHz Multifrequency Rectal linear probe (Frequency range: 6.5MHz, 7.5MHz, 8.5MHz), SP-3 power adapter, mouse.


Options:

• 5.0MHz Multifrequency micro-convex probe(Frequency range:4.5MHz,5.0MHz,5.5MHz)
• 7.5MHz Multifrequency HF linear probe(Frequency range:6.5MHz,7.5MHz,8.5MHz)
• 3.5MHz Multifrequency convex probe(Frequency range:2.5MHz,3.5MHz,5.0MHz)
• Video Printer
• Extra battery
• Car charger
