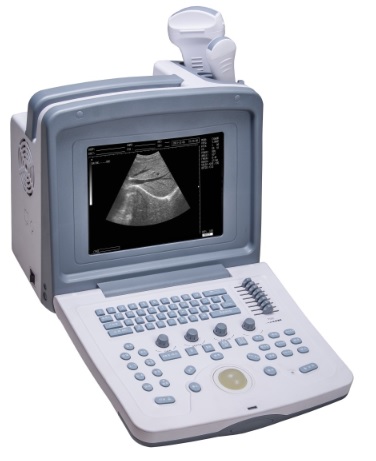

Digital Portable Ultrasound
Main Features:
WED-9618 adopts multiple technologies such as micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization(DRA), real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS) which can display a high quality, stable and high resolution image. The external Video printer and external monitor display can be realized with the PAL-D Video output port. All the ultrasound images can download to PC with high speed USB 2.0 port. Various image processing software packages are available. Contact us for more information

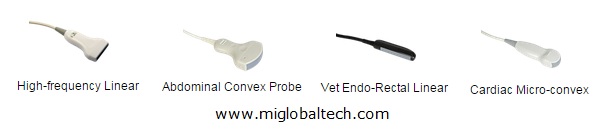

Standard configuration : main unit + 6.5MHz Multifrequency Rectal Linear, carrying case, one bottle of gel
Optional configuration :
7.5MHz Multifrequency Linear
5.0MHz Multifrequency Micro-Convex
3.5MHz Multifrequency Convex
Cart
Main Unit Parameters | |
Scanning Model | Electronic Linear Array, electronic convex array |
Cine-loop | ≥400 frames |
Image Storage | ≥32 frames |
Display Depth | ≥250mm |
Scanning Angle | Visible and adjustable |
Display Mode | B, B+B, B+M, B+M/M, M, and 4B |
Operation Interface | Chinese/English switchable |
TGC Adjustment | Near Field, Far Field, Total Gain Independent Adjustment |
Focus Control | Focus Number, Focus Distance, Focus Position Adjustment |
Image Processing | Image Black/White, Gamma Correction, Edge Enhancement and Histogram |
External Ports | External Ports: Video port, RS-232 port and USB port |
Measurement | Distance, Perimeter, Area, Volume, Obstetrics (GA measurement for horses, cattle, |
sheep, pigs, cats and dogs etc.) | |
Real-time Depth | 16 levels are adjustable |
Zoom | ≥2 times |
