This equipment is available for Human and Veterinary use. Este equipo está disponibles para uso humano y veterinario.

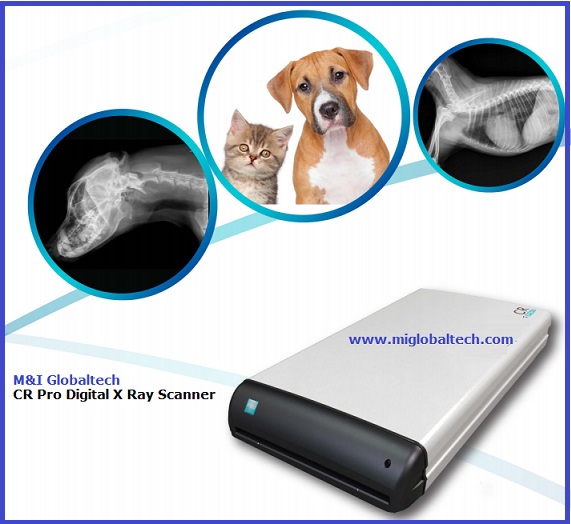

CR Pro Digital X Ray Scanner
Scans 70 plates/hour
Plates: 14"x17" , 10"x12", 8"x10". System Package includes two cassetes.
Compact and Lightweight
The CR Pro + Scanner System is an extremely compact and lightweight CR reader designed to fit into any size clinic. Set it on a desktop, mount it on the wall or move it directly to the animal when needed, even for off-site imaging. Experience the ease of this highly versatile system, capable of efficiently handling the everyday needs of professionals in clinics of any size.
Optimized Image Processing Parameters
The CR Pro+ Scanner System can be configured for nearly every clinical application, and is designed with DICOM connectivity. All imaging parameters are optimized, resulting in digital images that can be enhanced, enlarged, duplicated, and sent to any location in seconds with no loss of resolution.
Supported Ip Sizes | Universal Cassette: 14"x17" , 10"x12", 8"x10" |
Universal Cassette 14"x17": Supports IP sizes 10"x12”, | |
Resolution | Data Capture: 16-bits per pixel, 65,535 gray tones |
Weight | 46 lbs (21.5kg) |
System set-up options | Desktop, Wallmount |
Software | Image File Formats: DICOM 3.0, TIFF, BMP, JPEG -DICOM Send - Image Viewer - Window Level - Multi Frequency Image Processing - Zoom, Cropping, Mark - User defined LUT - DICOM Print - CD/DVD Burning. |
Power requirements | • 110/220/240V, 60/50cs |
Computer workstation | Intel Core i5. 500 Gigabytes Hard Disk, 4 Gigabyte RAM Windows 7 and 8 (32-bit & 64-bit) CD/DVD, 3 USB 2.0 ports. Monitor: 1920x1080, 1440x900, DVI Interface. Optional: Laptop |
Regulatory approvals | • FDA 510(k) • CE (0120) • UL, cUL, FCC • Not approved for mammography |
Safety Standards | • EN 60601-1 |
Operating conditions | • Temperature: 59-86 Fahrenheit (15-30 Celsius) |
For more information, contact us.
